For immediate
improvement in your building’s performance and a rapid return on your investment, consider applying an energy-saving film to your windows. Among the many sustainable solutions Chapman’s Building Performance team explores as part of our construction management services, we’ve found window filming to be one of the simplest, most cost-effective, and least invasive measures to implement.
For example, the payback for filming a suburban office building can be as little as two years, an astonishingly short Return on Investment. Not only do window films make it easier to condition your building, they also cut down on glare, increasing occupant comfort, and can eliminate 99% of ultraviolet light, increasing fabric lifespan.
Our Building Performance team can calculate your ROI for window film either as a standalone measure or as part of a broader performance upgrade analysis. They will evaluate current building performance data, such as yearly electric, gas, and water consumption to estimate your savings based on the specifications of a particular window film.
Here is a comparison of three 3M films and their ROIs for a 31,000-square-foot suburban office building:
|
|
LE35AMARL |
P18ARL |
PR40 |
|
|
Amber 35 Low E |
Silver |
Prestige |
|
Annual Energy Cost |
$159,467 |
$161,301 |
$166,378 |
|
Annual Energy Savings |
$11,003 |
$9,169 |
$4,092 |
|
Installed Cost |
$25,000 |
$25,000 |
$34,000 |
|
Simple payback |
2.27 years |
2.73 years |
8.31 years |
|
Visible Light Reflected |
18% |
20% |
7% |
|
Visible Light Transmitted |
19% |
10% |
39% |
|
Heat Gain Reduction |
57% |
57% |
— |
|
Heat Loss Reduction |
30% |
10% |
— |
|
Glare reduction |
62% |
80% |
56% |
|
UV Blocked |
99% |
99% |
99% |
|
Total Solar Energy Rejected |
74% |
74% |
59% |

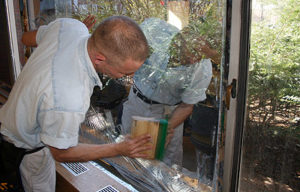

As part of our continuing effort to test sustainable products, we have installed these films on windows in our office so that visitors can see what they look like and judge their effectiveness for themselves.
Each film excels in a particular area: the Amber 35 is designed to keep heat inside the building in the winter; the Silver P18 reduces glare the best, and the PR40 lets in the most natural light.
If you are interested in viewing these products or others installed in our Platinum LEED-certified office, why not stop by for a tour? Or if you’d like us to evaluate the beneficial effect of window film and other building performance improvements in your current office or as a part of your next construction project, contact Allison Wellman at Chapman.
published 05.04.2010
